Screwless PCB Terminal Blocks

 /GH0744 sem botão de pressão, espaçamento de pinos 3,5 mm, 7A, alta corrente, conector de bloco de terminais de montagem de PCB Componentes eletrônicos Kit de passatempo eletrônico, bloco de terminais de PCB

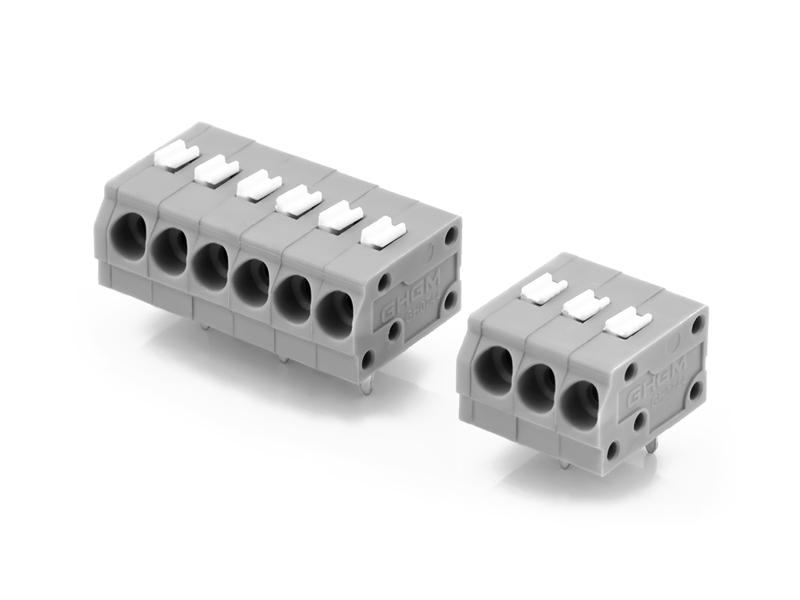

GH0744 Pitch 5.0mm PCB mount connector terminal blocks
GH0744 Pitch 5.0mm PCB mount connector terminal blocks GH0744 Pitch 5.0mm PCB mount connector terminal blocks GH0744 Pitch 5.0mm PCB mount connector terminal blocks

GH0744 sem botão de pressão, espaçamento de pinos 3,5 mm, 7A, alta corrente, conector de bloco de terminais de montagem de PCB Componentes eletrônicos Kit de passatempo eletrônico, bloco de terminais de PCB

  • Marca:

    GHGM

  • Item número.:

    GH0744

  • Estoque de mercadorias:

    1000

  • Aplicativo:

    LED bulb connector

  • Tom:

    5.0mm

  • Alfinete:

    2-24pin

  • Material - Contato:

    COPPER ALLOY

  • Classificação de Tensão:

    300V

  • Avaliação Atual:

    9A

  • Wire AWG:

    16-22AWG

  • Certificado:

    UL
Inquérito agora

Descrição do Produto:

GH0744 sem botão de pressão, espaçamento de pinos 3,5 mm, 7A, alta corrente, conector de bloco de terminais de montagem de PCB Componentes eletrônicos Kit de passatempo eletrônico, bloco de terminais de PCB, push-in CAGE CLAMP®


Este conector wiree to Board é amplamente usado para conectar fios a placas, pode ser para fonte de alimentação ou conectar qualquer outro perpheral como motor para a placa. A distância entre dois pinos de montagem é em múltiplos de 3,5 mm padrão para que este conector possa ser montado facilmente em PCBs de uso geral. Este conector pode ser usado com segurança para corrente de até 7A.


Detalhes da propriedade:

1. Materiais:

1.1 Invólucro: LCP UL94 V-0

1.2 Terminais: Liga de Cobre

2. Chapeamento: Terminais: Matte-in

3. Desempenho elétrico:

3.1 Tensão nominal: 300V (AC / DC)

3.2 Corrente nominal: 7A

3.3 Resistência de isolamento: 100MΩ min

3.4 Tensão suportável dielétrica: 500V AC R.M.S / 1m

4. Características Ambientais

4.1 Faixa de temperatura de armazenamento: -10 ℃ ~ + 50 ℃ Meio ano

4.2 Faixa de temperatura de operação: -40 ℃ ~ + 105 ℃

5. Compatível com RoHS


Recursos e vantagens:

  • O perfil baixo minimiza o sombreamento a bordo, com apenas 7,7 mm de altura

  • seu conector pode ser usado com segurança para corrente de até 7A.

  • Disponível em configurações de 2 a 24 pólos

  • Tiras de terminais compactas sem botões de pressão

  • Terminações push-in de condutores sólidos e ferrosos

  • Terminação / remoção de condutores de fios finos por meio de botões de pressão

  • 45 ° ângulo de entrada do condutor fornece fiação fácil e com economia de espaço

  • Combinações de cores personalizadas

  • As réguas de terminais também estão disponíveis com espaçadores, mediante solicitação


Aplicativo:

  • Conector de fonte de alimentação

  • Placa de circuito impresso (PCB)


Certificado:

  • O controle de qualidade tem prioridade no GHGM.

  • Sistema de gestão: IATF 16949: 2106, ISO 9001, ISO 14001, GB / T29490

  • Controle de qualidade de produção: UL, VDE, REACH, RoHS, IEC, CQC

  • Invenção e patentes: EUA, Alemanha, Japão, China

GHGM certificate, qualtity control, invention and patents.jpg


Embalagem e envio:

  • Escolhemos o melhor e mais seguro material de embalagem para garantir que as suas encomendas não sejam danificadas durante a entrega.

  • O método de embalagem diferente está sujeito a produtos diferentes, como Fita & real, Saco PE, Tubo, Bandeja.

  • Estes termos comerciais são aceitáveis, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg
